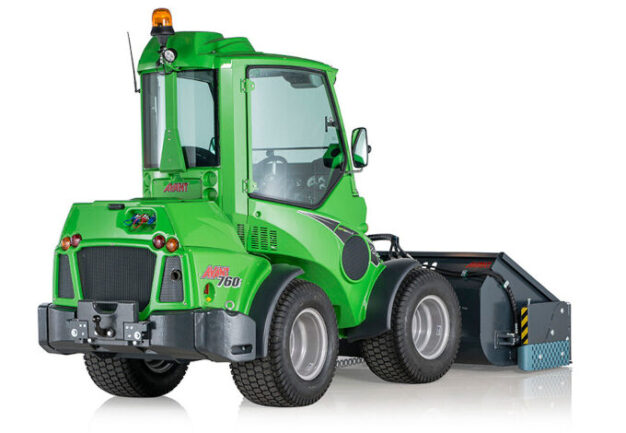

700 series

Outstanding handling capacity

Avant 700 series offers strong and real multi-use loaders for jobs where high lift capacity and/or drive speed is needed, yet at the same time the machine shall be as compact as possible. The 700 series is the perfect tool for street cleaning and other property maintenance tasks on narrow streets and yards in the cities, lifting and handling bales, etc. on farms, handling paving stones, moving materials on construction sites, and in many other applications. Easy transportation with a car trailer and a high drive speed enable quick transfers between work sites.

The Avant 735 is an excellent basic machine for various lifting and transfer work due to its lifting capacity and lifting height. It features a reliable Kubota 4-cylinder Stage V-compliant diesel engine that, thanks to its 26 hp, does not require a particulate filter. The Avant 755i and 760i are equipped with Kohler's 57 hp Stage V engine, and their powerful hydraulics are sufficient to power virtually all Avant attachments.

A wide range of options increases operator comfort as well. 700 series can be fitted with all cab options, also with A/C, which ensures the perfect conditions for a full day's work.

  • Lift capacity 1400 kg
  • Lift height 3.1 m

  • Engine power 49-57 hp

  • Drive speed 11-26 km/h

  • Cab options L/LX/DLX available, DLX also with A/C

  • Easy to transport with a car trailer

  • Optidrive™ drive circuit gives more power for the drive and hydraulic attachments

  • LENGTH 3060 mm
  • WIDTH 1290 mm
  • HEIGHT 2060 mm
  • WEIGHT 1800 kg
  • STANDARD WHEELS 320/60-12 HD TR
  • TRANSMISSION, DRIVE Hydrostatic Avant OptidriveTM
  • PULLING FORCE MAX. 1200 kp
  • DRIVE SPEED MAX. 11 km/h
  • AUX. HYDRAULICS OIL FLOW / PRESSURE 50 l/min 200 bar
  • TURNING RADIUS INSIDE/OUTSIDE 1240 / 2780 mm
  • LIFTING HEIGHT TO PIVOT POINT 3080 mm
  • MAX. LIFTING CAPACITY (HYDR.) 2100 kg
  • MAX. TIPPING LOAD* 1400 kg
  • MAX. BREAKOUT FORCE / 50 CM 1700 kg
  • ENGINE MAKE AND TYPE Kubota V1505 Stage V, 4-cyl.
  • ENGINE OUTPUT (ECE R120) 19 kW (26 hp)
  • MAXIMUM TORQUE 93 Nm @ 1700 rpm
  • FUEL Diesel
  • PRODUCT NO: A439072

*) With extra counterweights

  • Wheel size: 27 x 8.50 – 15; tractor; Width: 1030 mm
  • Wheel size: 26 x 12.00 – 12; tractor or grass; Width: 1295 mm
  • Wheel size: 320/60-12 HD; tractor; Width: 1295 mm
  • Wheel size: 320/55-15 tractor or grass; Width: 1305 mm
  • Wheel size: 400/50-15 tractor or grass
  • Cab type: 26×12.00-12 or 320/60-12 wheels; L Cab; 2060 mm
  • Cab type: 26×12.00-12 or 320/60-12 wheels; LX Cab; 2078 mm
  • Cab type: 26×12.00-12 or 320/60-12 wheels; DLX Cab; 2105 mm
  • Cab type: 320/55-15* wheels; L Cab; 2094 mm
  • Cab type: 320/55-15* wheels; LX Cab; 2112 mm
  • Cab type: 320/55-15* wheels; DLX Cab; 2139 mm

*) With 400/50-15 machine is 30 mm higher
