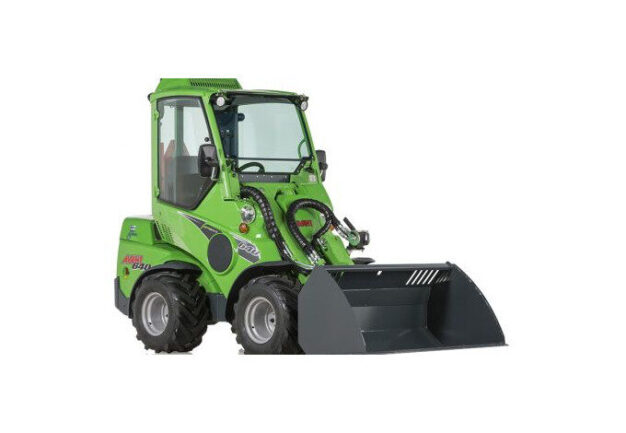

600 series

A perfect combination of power and agility

Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package. This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 1,1-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments. The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.

600 series customers also benefit from Avant’s telescopic boom, which is a standard feature. Lift height and outreach are excellent for a machine of this size and they can be steplessly adjusted with the teleboom. This guarantees very fast and ergonomic load handling.

The great Avant stability is present in 600 series as well, and the excellent visibility to the attachment and work area is valued by all operators. Avant’s 4x4 hydrostatic drive system gives the best possible traction in all situations.

The comprehensive range of options are available for 600 series also, including all cab options. From over 200 attachments specially designed for Avant loaders the customers can choose the best package for any use.

  • Lift capacity 1100 kg
  • Lift height 2.8 m
  • Engine power 26-37.5 hp
  • Drive speed 11-20 km/h
  • Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
  • Perfect for small job sites with limited or narrow accesses
  • Easy to transport with a car trailer
  • LENGTH 2570 mm
  • WIDTH 1290 mm
  • HEIGHT 2035 mm
  • WEIGHT 1330 + 170 kg
  • STANDARD WHEELS 26×12.00-12″ Grass/ TR
  • TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM
  • PULLING FORCE MAX. 1200 kp
  • DRIVE SPEED MAX. 12 km/h
  • AUX. HYDRAULICS OIL FLOW / PRESSURE 44 l/min 200 bar
  • TURNING RADIUS INSIDE/OUTSIDE 900 / 2190 mm
  • MAX. LIFTING HEIGHT 2835 mm
  • TIPPING LOAD 1100 kg
  • MAX. BREAKOUT FORCE / 50 CM 1250 kg
  • ENGINE MAKE AND TYPE Kubota D1105, 3-cyl
  • ENGINE OUTPUT (ECE R120) 19 kW (26 hp)
  • MAXIMUM TORQUE 72 Nm @ 2200 rpm
  • FUEL Diesel
  • PRODUCT NO: A424286
  • Wheel size 27 x 8.50 – 15 *) tractor Width 1030 mm
  • Wheel size 23 x 8.50 – 12 tractor or grass Width 1080 mm
  • Wheel size 23 x 10.50 – 12 tractor or grass Width 1130 mm
  • Wheel size 26 x 12.00 – 12 tractor or grass Width 1290 mm
  • Wheel size 320/60 – 12 HD tractor Width 1290 mm
  • Wheel size 26.5 x 14.00 – 12** grass Width 1420 mm

*) bigger wheels will increase the total machine height by 13 mm
**) requires 40 mm spacers on the wheel hubs
***) Road traffic light kit width for ROPS safety frame is 1090 mm

  • Wheel size 26×12.00-12 & 320/60-12* L Cab 2035 mm
  • Wheel size 26×12.00-12 & 320/60-12* LX Cab 2025 mm
  • Wheel size 26×12.00-12 & 320/60-12* DLX Cab 2045 mm
  • Wheel size 26×12.00-12 & 320/60-12* DLX Cab with A/C on the roof 2181 mm
  • Wheel size 27×8.50-15 L Cab 2048 mm
  • Wheel size 27×8.50-15 LX Cab 2038 mm
  • Wheel size 27×8.50-15 DLX Cab 2058 mm
  • Wheel size 27×8.50-15 DLX Cab with A/C on the roof 2194 mm

*) with 23″ wheels the machine is 15 mm lower
