500 series
Avant’s ingenious articulated design where the driver sits in the front chassis and has a perfect view on the attachment and work area means low center of gravity of the machine, which is an important factor in the stability. Also the rigid articulation joint which doesn’t swing sideways increases stability in all situations and at the same time best possible traction can be achieved thanks to the advanced 4x4 system.
All Avant loaders are equipped with an open ROPS/FOPS certified cab as standard, and also the optional enclosed cabs (L, LX, DLX, GT) comply with the ROPS/FOPS standards.
Excellent choice with robust and simple hydraulics
The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.
Avant 500 series is a reliable partner for all-round use. Like all Avants, it can be equipped following customer needs, including all cab options (L, LX, DLX). The comprehensive Avant attachment range guarantees efficient working all year round.
- Lift capacity 800-950 kg
- Lift height 2.8 m
- Engine power 22-26 hp
- Drive speed 12-19 km/h
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
- Simple, effective hydraulics means good power and low operating costs
- Easy to transport with a car trailer

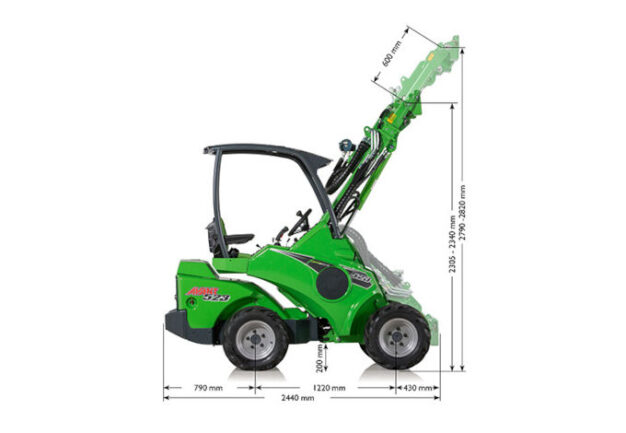

- LENGTH 2450 mm
- WIDTH (WITH STANDARD WHEELS) 1130 mm
- HEIGHT (WITH STANDARD WHEELS) 1985 mm
- WEIGHT 1200 + 170 kg
- STANDARD WHEELS 23×10.50-12″ grass/TR
- TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM
- PULLING FORCE 900 kp
- DRIVE SPEED MAX. 12 km/h
- AUX. HYDRAULICS OIL FLOW / PRESSURE 34 l/min 185 bar
- HYDRAULIC OIL COOLER standard
- TURNING RADIUS INSIDE/OUTSIDE 995 / 2050 mm
- MAX. LIFTING HEIGHT 2790 mm
- TIPPING LOAD 800 kg
- MAX. BREAKOUT FORCE / 50 CM 1100 kg
- ENGINE MAKE AND TYPE Kubota D902 Stage V
- ENGINE OUTPUT (ECE R120) 16 kW (22 hp)
- MAXIMUM TORQUE 56 Nm @ 2600 rpm
- FUEL Diesel
- PRODUCT NO: A21741
- Wheel size 27 x 8.50 – 15 *) tractor Machine width 1030 mm
- Wheel size 23 x 8.50 – 12 tractor or grass Machine width 1080 mm
- Wheel size 23 x 10.50 – 12 tractor or grass Machine width 1130 mm
- Wheel size 26 x 12.00 – 12 *) tractor or grass Machine width 1290 mm
- Wheel size 320/60 – 12 HD *) tractor Machine width 1290 mm
- Wheel size 26.5 x 14.00 – 12 **) grass Machine width 1420 mm
*) Bigger wheels will increase total machine height by 20-35 mm
**) Requires 40 mm spacers on the wheel hubs
***) Road traffic light kit width for ROPS safety frame is 1090 mm
- Wheel size 26×12.00-12 or 320/60-12* L Cab 2035 mm
-
Wheel size 26×12.00-12 or 320/60-12* LX Cab 2025 mm
-
Wheel size 26×12.00-12 or 320/60-12* DLX Cab 2045 mm
-
Wheel size 27×8.50-15 L Cab 2035 mm 2048 mm
-
Wheel size 27×8.50-15 LX Cab 2025 mm 2038 mm
-
Wheel size 27×8.50-15 DLX Cab 2045 mm 2058 mm
*) With 23″ wheels machine is 15 mm lower
