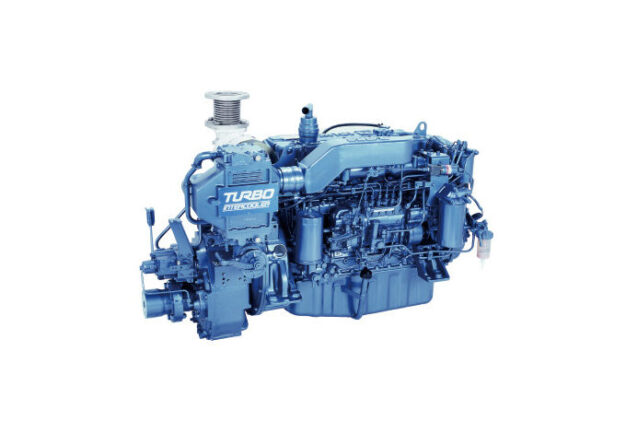

UM6BG1
Medium Duty
Duty Cycle; Operation up to 60% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 6 hours and annual usage up to 3000 hours.
Light Duty
Duty Cycle; Operation up to 40% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 2 hours and annual usage up to 2000 hours.
- Rated output kW(PS)/min-1 Medium duty 154 (210) / 2600
- Rated output kW(PS)/min-1 Light duty 169 (230) / 2700
- DisplacementLit. (cid) 6.49 (396)
- Bore x Strokemm (in) 105 × 125 (4.13 × 4.92)
- Configuration 6-cylinder, vertical in-line, 4-cycle deisel engine
- Aspiration Turbo chargered / Intercooler
- Exhaust gas status IMO Tier II
- Marine gear Model MGN40E
- Marine gear Reduction ratio 2.33, 2.91, 3.45
- Leaflet PDF
- Rated output kW(PS)/min-1 Medium duty 191 (260) / 2600
- Rated output kW(PS)/min-1 Light duty 210 (285) / 2700
- DisplacementLit. (cid) 6.49 (396)
- Bore x Strokemm (in) 105 × 125 (4.13 × 4.92)
- Configuration 6-cylinder, vertical in-line, 4-cycle deisel engine
- Aspiration Turbo chargered / Intercooler
- Exhaust gas status IMO Tier II
- Marine gear Model MGN40E
- Marine gear Reduction ratio 2.33, 2.91, 3.45
- Leaflet PDF
