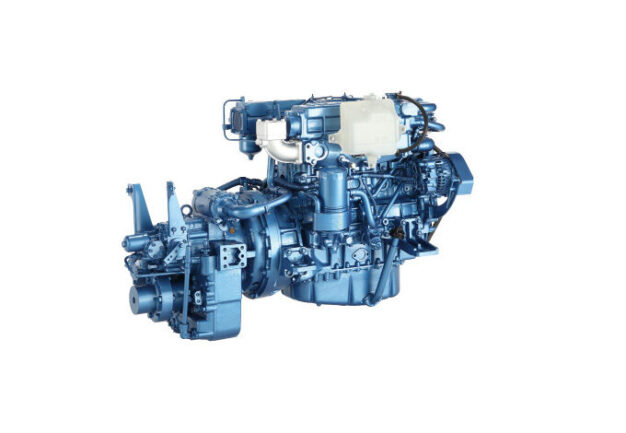

UM4JB1
Medium Duty
Duty Cycle; Operation up to 60% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 6 hours and annual usage up to 3000 hours.
Light Duty
Duty Cycle; Operation up to 40% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 2 hours and annual usage up to 2000 hours.
- Rated output kW(PS)/min-1 Medium duty 49 (67) / 3200
- DisplacementLit. (cid) 2.77 (169)
- Bore x Strokemm (in) 93 × 102 (3.66 × 4.02)
- Configuration 4-cylinder, vertical in-line, 4-cycle deisel engine
- Aspiration Natural aspiration
- Marine gear Model MGN35A
- Marine gear Reduction ratio 2.56, 3.05, 3.45
- Leaflet PDF
- Rated output kW(PS)/min-1 Medium duty 81 (110) / 3100
- Rated output kW(PS)/min-1 Light duty 85 (115) / 3200
- DisplacementLit. (cid) 2.77 (169)
- Bore x Strokemm (in) 93 × 102 (3.66 × 4.02)
- Configuration 4-cylinder, vertical in-line, 4-cycle deisel engine
- Aspiration Turbo chargered / Intercooler
- Marine gear Model MGN35A
- Marine gear Reduction ratio 2.56, 3.05, 3.45
- Leaflet PDF
