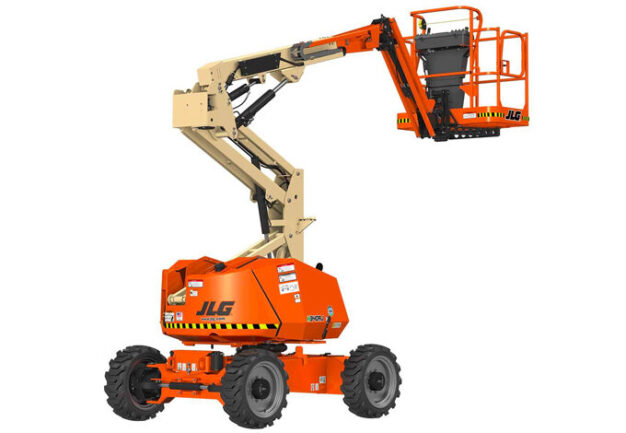

Articulating boom lifts (knuckle booms) are used for reaching up and over machinery, equipment, and other obstacles mounted on floors, and for reaching other elevated positions not easily approached by a straight (telescopic) boom lift.
The machine's turntable may be rotated 360 degrees in either direction. The boom can be raised or lowered from vertical to below horizontal and extended (telescoped) while the work platform remains horizontal and stable.
It can be maneuvered forward or backward and steered in any direction by the operator from the work platform, even while the basket is elevated. All articulating models are drivable at full elevation and have chassis widths that provide access to narrow industrial aisleways and congested work areas.

  • Platform Height: 33 ft 10 in. / 10.31 m
  • Machine Width: 6 ft 4 in. / 1.93 m
  • Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
  • Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
  • Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
  • Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
    * Compared to a diesel-powered JLG 340AJ under similar test conditions. Actual results may vary.
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
